6 Reasons to Choose Wintec Wrapper Machine
Design Based on the Customer Demand
Introduction (Wrapper Production Line)：
...........................................................................................................................................................................................................
|
|
Name：Wrapper Production Line
Type：WT/600
Productivity: 1000kg/hr
Standard Mixed Time: 15mins
Calendar Roller Width: B=600mm
Total Installed Capacity: 80kw
Dimensions: L20.0m*W3.5m*H4.5m
..........................................................................................................................................................................................................
01 Vacuum Mixer
1）Flour mixing with vacuum technology.
2）Two-phase kneading techniques: high speed premixing of flour and minor ingredients to improve the mixture uniformity. High and low speed for dough kneading after water adding to obtain uniform and consistent flour dough.Then the high quality dough has been formed under the time control.
3） Paddle stirring with changeable angles, dough can move along the axial directions, improving uniformity of mixing.
4）Sturdy stainless steel mixing elements and powerful driving system allow retarting of mixer with full load after short time stoppage.
5） Unloading rotate by itself, reduced machine opening places, to a better overall seal.
6） Automatic mixing process control. Timing of each mixing phase is adjustable on PLC and Touch Screen control system.
Equipment Introduction：
...........................................................................................................................................................................................................
1).High strength alloy steel rollers with 350mm diameter to ensure performance. 2)Automatic control of dough feeding
3).Speed synchronization by optical detector automatically
4).Change the bearing no need to remove the roller. It's convenient to fix maintain it.
3).Speed synchronization by optical detector automatically
4).Change the bearing no need to remove the roller. It's convenient to fix maintain it.
02 Compound Roller Stand
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
1） Wintec owns the proprietary technology on Multidirectional Calendar.
2）Adjusting calendar belt swing ankles under digital control, easier to adjust and operate.
3） Process of modular design, rolling directions can be designed as customer's demand, like the shape of “米”.
4） 300mm diameter roller，rolling gently.
2）Adjusting calendar belt swing ankles under digital control, easier to adjust and operate.
3） Process of modular design, rolling directions can be designed as customer's demand, like the shape of “米”.
4） 300mm diameter roller，rolling gently.
03 Multidirectional Calendar
..........................................................................................................................................................................................................
1）Consisted with 7 pairs of high strength alloy steel rollers .Their diameters range from 350 to 120mm.
2）Each roller stand is independently driven by a variable frequency driver. Speed synchronization among roller stands and up/down stream machines is automatically realized and precisely maintained by photo sensors and PLC system.
2）Each roller stand is independently driven by a variable frequency driver. Speed synchronization among roller stands and up/down stream machines is automatically realized and precisely maintained by photo sensors and PLC system.
04 Continuous Roller System
1）
Wrapper
laminated and cutting machine has been integrated design, transform quick and
easy.
2） Dosing wrapper two sides, cake dimension cutting is completed automatically according to the program.
3） Double-deck, change the tray without stoppage, to a high speed production.
4） Could dosing on the wrappers before cutting, it's beneficial to produce fresh noodle.
5） Noodle cake can be cut by pre-set length, digital adjustment is accurate and fast.
2） Dosing wrapper two sides, cake dimension cutting is completed automatically according to the program.
3） Double-deck, change the tray without stoppage, to a high speed production.
4） Could dosing on the wrappers before cutting, it's beneficial to produce fresh noodle.
5） Noodle cake can be cut by pre-set length, digital adjustment is accurate and fast.
05 Laminated Cutting Machine
..........................................................................................................................................................................................................
Improved Wrapper Production Line
1, One production line can produce 3 products:

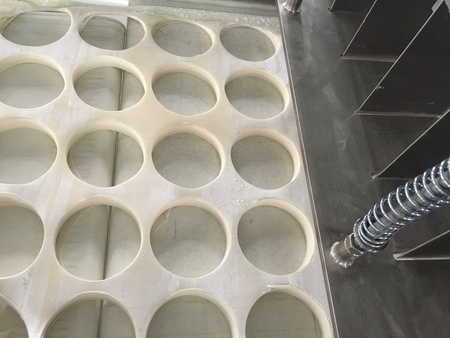

Round wrapper,
Square wrapper,
Fresh noodle.
2, Outer surface of wrapper could be moved automatically.
3, Full-Automatic packaging.
